How do Bridge Beams Allow Safe Transportation

Bridges facilitate convenient and safe navigation across rivers, valleys, and other obstacles. They can feature steel or concrete beams designed to handle the weight of cars and loaded trucks. Bridge beams transfer the weight and load to the bridge’s support system, preventing the bridge from collapsing. Here are a few ways beams allow safe transportation:

Load Distribution

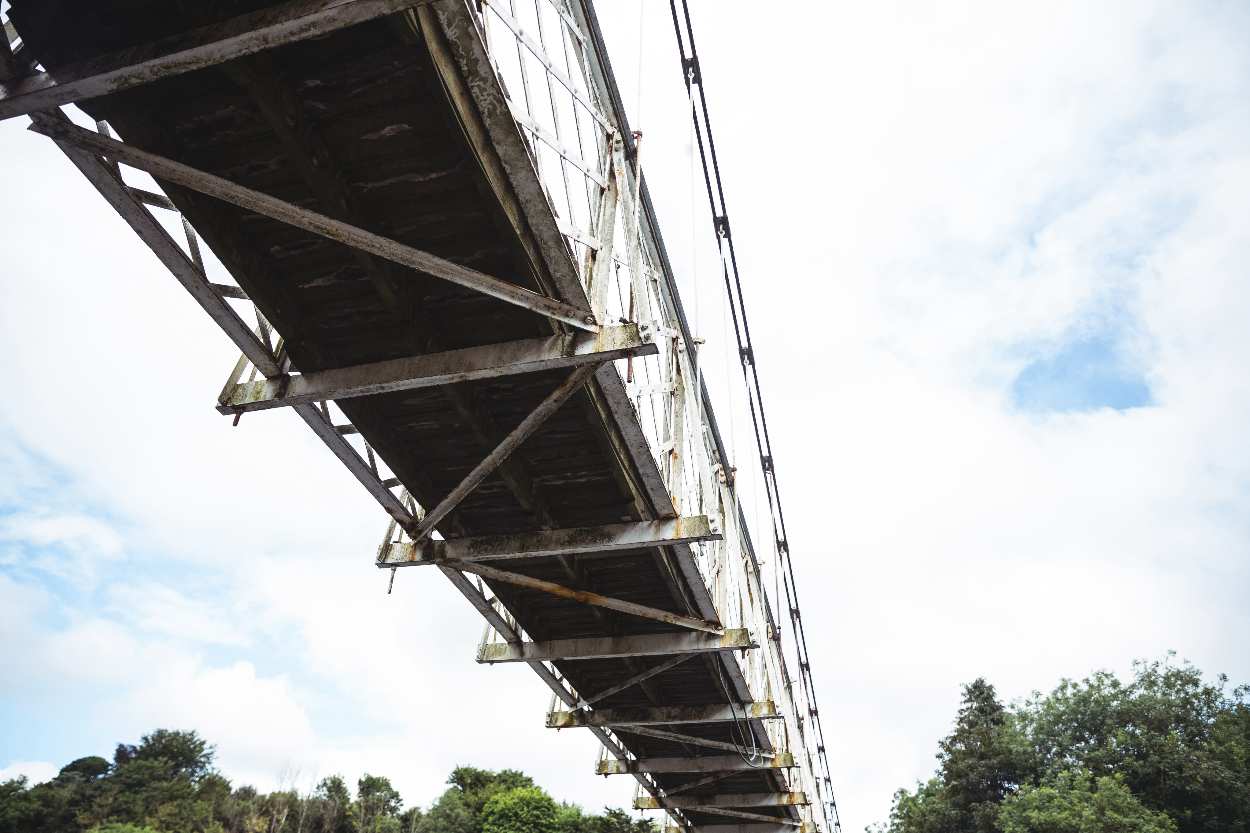

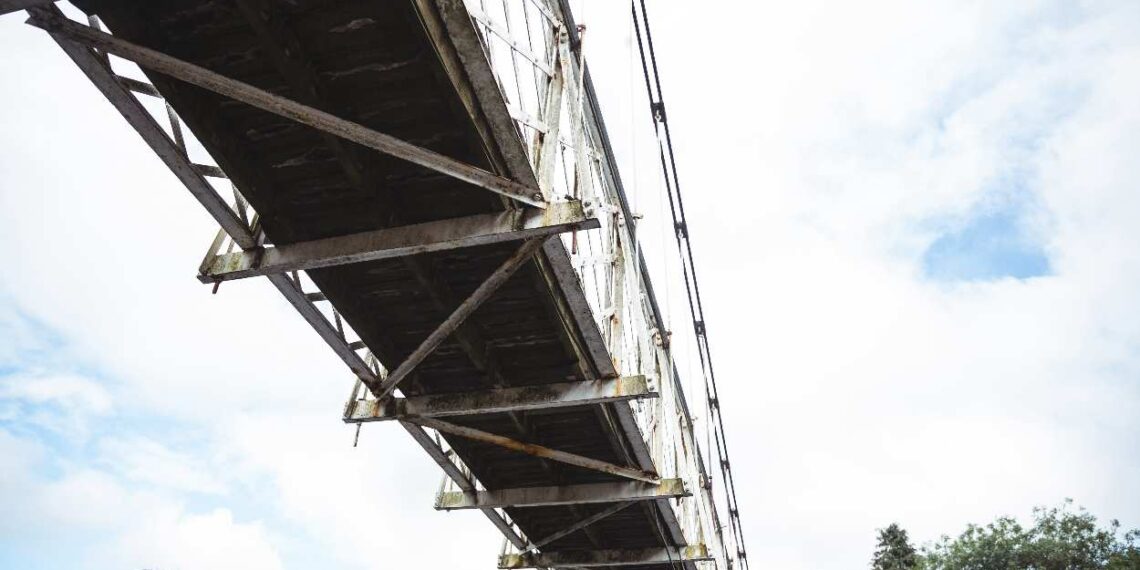

• Beams are horizontal supports installed underneath the driving deck. They can support pre-cast or cast-in-place bridge decks and vehicles that travel on them. Besides providing horizontal support, bridge beams spread the load of cars across the bridge’s structure. When a load is applied to the deck, the beams underneath absorb and evenly distribute the weight to the supports. Bridge systems feature various supports, including piers and abutments at either end of the construction. By spreading the weight of the load, beams prevent any isolated part of the bridge from becoming overstressed.
• Some beams are made of high-strength steel and concrete to help withstand the weight of mass transit. These materials offer enhanced resistance against compression and tension forces generated when the beam bends under the load. As vehicles pass through the bridge, their weight is transferred to the deck and the beams. The load is then transferred to the ground, preventing damage to the bridge. Bridge system installers use various beams, including U-beams, which are ideal for short distances. They support dynamic horizontal loads and forces of moving traffic.

Structural Support

• Beams are the backbone of a bridge system and protect the bridge’s top surface from bending or deformation. They can resist various forces, including dead and live loads, as well as environmental forces. Dead loads come from the permanent weight of the bridge itself, while live loads are temporary weights from moving vehicles and pedestrians. Environmental forces come from wind, thermal expansion, and seismic activity. Since bending is inherent in bridge systems, the beams are installed in shorter spans between supports. When beams bend under load, the top and bottom surfaces experience compression and tension.
• Bridge beams may feature high-quality steel and prestressed concrete constructions that offer enhanced support without bending or breaking. Concrete offers resilience against compressive forces, while steel is ideal for tensile forces. By supporting vertical and horizontal forces, the beams provide stability and rigidity for safe crossing. The beams can be installed in a layered construction to allow for load redistribution and offer better resilience against bending. Concrete bridge systems may also incorporate safety features, such as reinforcement bars, to enhance durability and prevent catastrophic failure.

Vibration Control

• Another way that beams help allow safe transportation is through vibration control. Vibrations occur when traffic moves across a bridge. If the vibrations aren’t controlled, they can accelerate wear and fatigue the bridge’s structure over time. This may damage the top surface. Bridge system installers design the beams with dampening systems and arrangements. The design absorbs and spreads out vibrations from the sources to the ground, reducing damage to the bridge. Manufacturers also design beams to resist vibrations from seismic events and remain strong and steady under constant use. They adapt the design to various bridge systems, including beam, girder, and truss bridges.
• Adaptability allows the infrastructure to be tailored to specific needs, such as short distances or large gaps. The beams also provide safety across diverse environments and traffic demands. You can customize beams for bridges that experience mass transit and heavy trucks or trailers.

Design Safety

• Beams should be designed with redundancy to accommodate system failure. If one beam fails, the load is redistributed to adjacent beams. A layered approach can enhance safety and offer enough time for engineers and inspectors to identify and repair issues. Engineers should regularly check for cracks, corrosion, and wear that may compromise the strength of the beams. This keeps the bridge safe and functional, preventing accidents. Beam designs should also account for expansion and contraction caused by temperature changes and seasonal freeze-thaw cycles. They feature expansion joints and bearings that accommodate slight movements while maintaining the bridge’s structural integrity.

Get High-Quality Bridge Beams

• High-quality steel and concrete beams support the bridge’s deck and the load above it. Experienced manufacturers, engineers, and architects design, install, and maintain the infrastructure. They can also add features like guardrails and crash barriers to further enhance bridge safety. Contact a bridge systems provider to find out more about bridge beams.

Conclusion

Bridge beams play a vital role in ensuring safe, reliable, and long-lasting transportation infrastructure. From distributing weight evenly and supporting structural integrity to controlling vibrations and adapting to various environmental challenges, beams are the core components that keep bridges functional and secure. Their design combines strength, flexibility, and safety features to accommodate daily traffic and unforeseen stresses, such as natural forces. By using high-quality materials and adhering to proper engineering practices, bridge systems can provide safe passage for generations. Regular inspections, maintenance, and thoughtful design enhancements ensure these structures continue to meet modern transportation needs efficiently and safely.
